“Telit has developed a multi constellation GPS with built-in antenna that means our Glyn customers do not need to be dedicated RF engineers to utilise this technological breakthrough,” says Martin de Lange. “You can get very accurate time and location from it.”

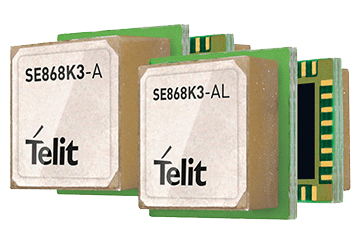

The tiny and mighty SE868K3-A/AL is the industry’s smallest multi-constellation GNSS patch antenna module. Designed with an additional Low Noise Amplifier (LNA) and Surface Acoustic Wave (SAW) Filter, these modules deliver best-in-class performance. The combination of advanced features and a low-profile design significantly simplifies integration for space constrained applications by eliminating the need for external components.

The SE868K3-A/AL series offers multiple interfaces and a combination of features including:

  • Multi-constellation GNSS core
  • Flash memory
  • Ultra-compact 11×11 mm ‘cavity’ PCB package
  • Standard variant with integrated 9x9x4mm SMT antenna
  • Low profile variant with 9x9x2mm antenna
  • Additional LNA and SAW filter
  • Real Time Clock (RTC) and Temperature Compensated Crystal Oscillator (TCXO)
  • Jamming rejection
  • Pin-to-pin compatibility with other modules in the series
  • Ephemeris file injection (A-GPS)
  • Satellite Based Augmentation System (SBAS) compliant

See full features list and technical specifications here:

Talk to us about how we can assist you to design with this product: sales@glyn.com.au
